Liquid-Cooled PEM Fuel Cell | 5kW to Multi-MW

Overview

Industrial-Scale Hydrogen Power — Proven & Scalable

Our liquid-cooled PEM fuel cell systems represent the pinnacle of hydrogen power technology. Using proprietary stack architecture — the same technology behind our world-record 500hp fuel cell stack — these systems deliver high-power, high-reliability performance for the most demanding applications.

Available in containerised, skid-mounted or custom configurations, our systems range from 5kW pilot installations to multi-MW power plants, and can be arrayed in parallel for virtually unlimited capacity.

Every system is backed by our HyAIOps operating system — providing 24×7 automated operation, remote monitoring, predictive maintenance and safety management.

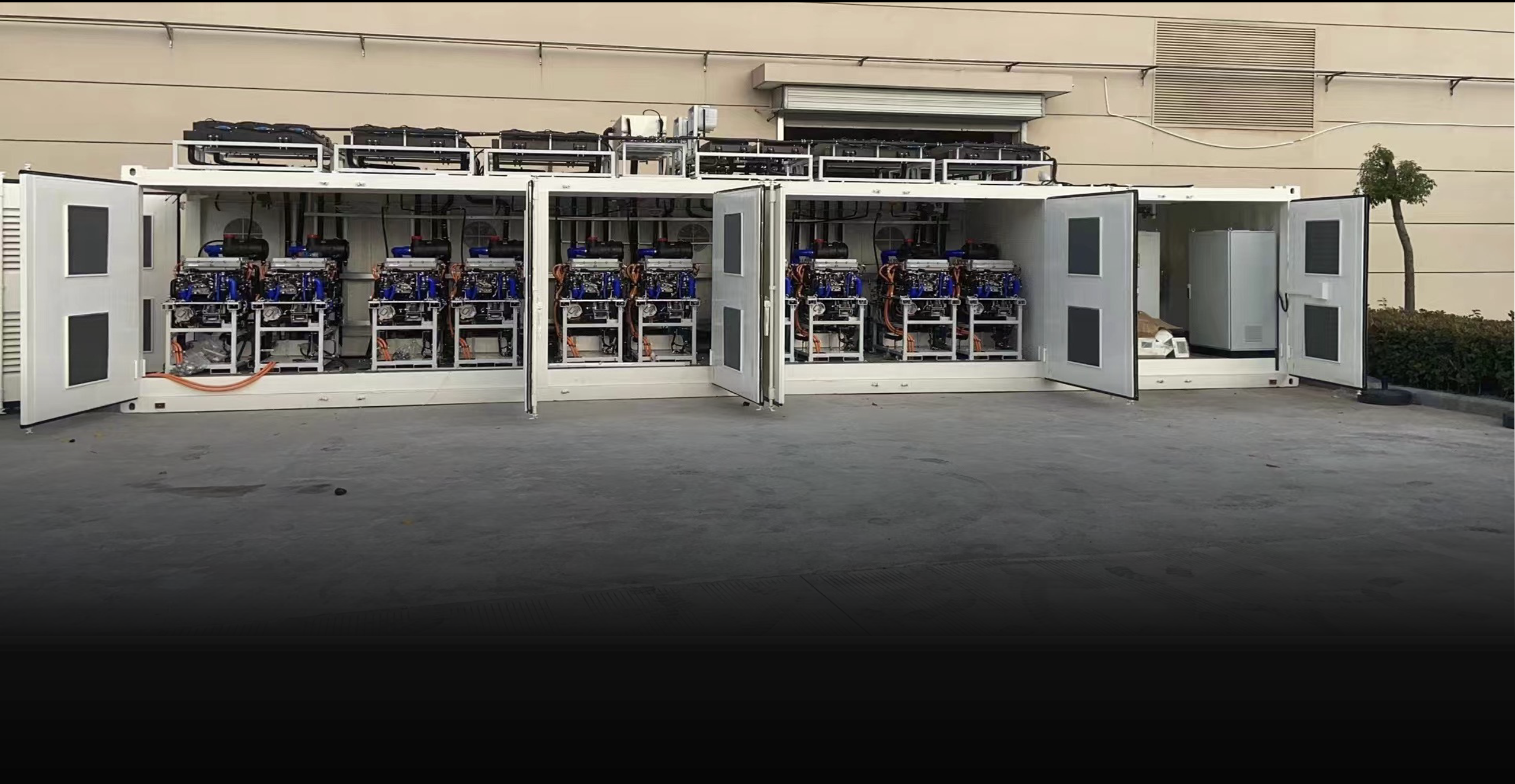

Horizon Liquid-Cooled PEM Fuel Cell Containerized System

Power Range

Scalable from 5kW to Multi-MW

Select a power range below. Every system is configurable — contact us with your exact requirements.

⚡

5kW – 50kW

Pilot projects, R&D facilities, small off-grid installations, and backup power for critical equipment.

🏭

50kW – 250kW

Telecom hubs, medium data centres, commercial buildings, and industrial process backup power.

🏢

250kW – 1MW

Large data centres, railway traction, hydrogen refuelling station power, and utility-scale backup.

🌐

1MW – Multi-MW

Hyperscale data centres, hydrogen power plants, grid stabilisation, and large-scale mobility projects.

Featured System

Containerised Hydrogen PEM Power System

Our containerised systems integrate everything needed for a turnkey hydrogen power plant: PEM fuel cell stacks, hydrogen storage cylinders, power electronics, cooling system, inverter, and advanced HMI — all in a standard 20ft or 40ft container.

Parameter	Specification
Power Output	100kW – Multi-MW (modular)
Fuel	Hydrogen (gaseous, 350–700 bar compatible)
Electrical Output	3-phase AC or DC (configurable)
Efficiency	Up to 60% electrical efficiency
Operating Temperature	-20°C to +50°C
Emissions	Zero — water vapour only
Noise Level	<65 dB at 1m (whisper quiet)
Control System	HyAIOps — remote monitoring & auto operation
Container	20ft / 40ft standard ISO or custom enclosure

Containerized PEM Hydrogen Fuel Cell Backup Power System

Key Features

Why Our Liquid-Cooled Systems Lead the Market

🏆

World-Record Stack

500hp (373kW) single-stack world record. Highest power density of any commercially available PEM fuel cell.

🔇

Silent & Vibration-Free

No combustion, no rotating parts — practically silent operation. Ideal for urban data centres and sensitive environments.

📊

HyAIOps Smart Control

AI-powered operating system with 24×7 automatic operation, remote monitoring, safety interlocks and predictive alerts.

🔗

Modular & Scalable

1MW modular single stack design. Arrays of stacks scale seamlessly to any power requirement — no bespoke engineering.

🌿

Zero Emissions

Only by-product is pure water. No CO₂, no NOₓ, no particulates — supports ESG, LEED and net-zero commitments.

⚡

Fast Start & Response

Cold start in <30 seconds. Instant load following. Suitable for primary, backup and peak-shaving applications.

Applications

Built for India's Most Demanding Applications

🏢 Hyperscale Data Centers

Replace diesel DG sets with silent, clean hydrogen backup. Supports 24×7 uptime with zero fuel logistics and zero emissions — critical for Tier III/IV data centres in India.

🚆 Railways & Hydrogen Trains

Traction power systems for hydrogen-powered trains, metro auxiliary systems, and station backup power. Our systems are proven in commercial train deployments globally.

🚛 Hydrogen Vehicles & Fleets

Powertrain systems for hydrogen trucks, buses, material handling vehicles and port equipment. World's first large-scale H₂ truck contract (China, 2020).

🏭 Industrial & Process Industries

Mission-critical backup for pharmaceutical plants, oil & gas facilities, semiconductor fabs and chemical processing where DG downtime causes massive losses.

⚓ Marine & Defense

Silent propulsion and auxiliary power for submarines, patrol vessels, remote military bases and border infrastructure where fuel logistics are challenging.

🌿 Self-Fueling H₂ Power Plants

Integrated electrolyser + fuel cell systems that produce hydrogen from renewable electricity on-site. True zero-emission, self-sufficient energy islands.

Get a Proposal

Request Technical Specification & Quote

Detailed specifications, system design and pricing are provided after understanding your specific requirements. Our engineers will respond within 24 hours.

ℹ️ Detailed datasheets and application notes for liquid-cooled PEM systems are shared directly by our technical team based on your project requirements.
